Massload

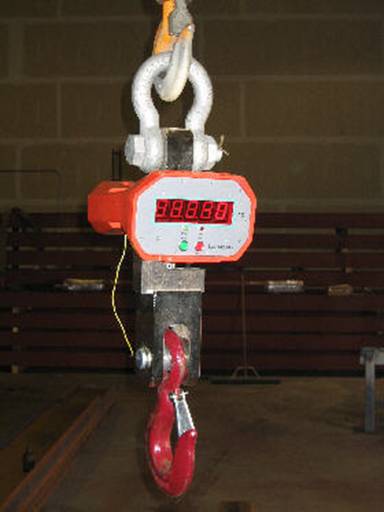

Electronic Hanging Crane Scale

     3,000 kg x 1  :  (6,600 lb x 2)

         5,000 kg x 5  :  (11,000 x 10)

  10,000 kg x 10  :  (22,000 x 20)

Our electronic hanging scale consists of a hanging element, high -precision load cell, 24 bit A/D converter and a 5-digit 1.2" (word height 40mm) digital display with high brightness, which can be clearly read from a relatively far distance. Use of anti-shaking and anti-vibrating swing intellectual digital filter stabilizes reading, with a stabilization time of less than 5 seconds. It has the functions of instant taring, and delayed taring. Adoption of low power consumption design extends service life of the battery. With full charged battery, LED display can continuously work for 100 hours. It also has an over-discharge protection circuit, which prevents battery from damage and shortening of service life due to over-discharge. It can automatically save energy which extends the service life of the battery.

Main Specifications:

3 to 10 ton capacity.
Applicable temperature range: -10C to+40C
Relative humidity: < 90%RH
Word height: 40mm / 5 digits
Safe over-load: 200% F.S

Damaging over-load: 400%

Stability of reading:< 5 sec.

Remote zero, hold and off

Complete with hoist hook and shackle

Crane Scale Dimensions

Applications

Foundries, charging, blending,
Weighing hot metal,
Using lifting magnets.

Reverse weighing for dosing applications

Weighing of rolled steel, coils, sheet metal

Control of goods inward/outward

Test loading and safety tests.
